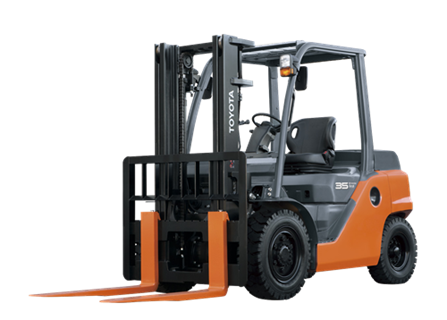

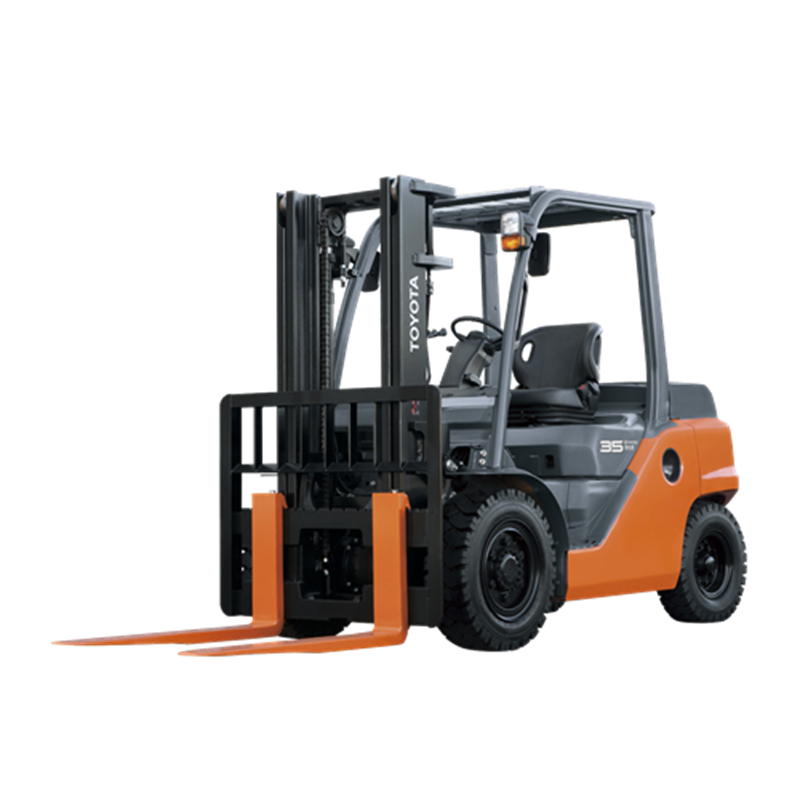

Toyota 3.5 - 5.0 Tonne 8-Series 4-Wheel Forklift

LIFTS
5,000 kg
UP TO
7,000 mm
AISLE WIDTH
4,480 mm

3,500kg - 5,000kg capacity
Outdoor use
Famous Toyota quality, reliability & comfort
Concrete, Bitumen, Compacted gravel, Paved

ENQUIRE

Download product brochure

Toyota 3.5 - 5.0 Tonne 8-Series 4-Wheel Forklift

5000 kg
7000 mm
4480 mm

8-Series 3.5-5.0 Tonne 4-Wheel Forklift

If productivity is a necessity then the Toyota 8-Series 3.5-5.0 tonne forklift range from Toyota has it all!

The capacity and power you need for your heavy-duty jobs. The Toyota ergonomics and comfort your operators want. And our customer field testing during development produces those subtle Toyota refinements such as ease of service and dependability that make it even better value.

Built Toyota tough, selected Toyota 8-Series forklifts feature: Toyota's exclusive System of Active Stability technology, Operator Presence Sensing safety system, Active Mast Function / Automatic Fork Leveling controls, and Wide View Mast for unparalleled visibility.

Toyota engines - tough, reliable and environmentally friendly
Load-sensing power steering adjust the amount of power-steering fluid according to the load burden on the rear axle, reducing energy loss
2-stator torque convertor and transmission used to achieve optimal drive power and travel speed with no gear change helping to reduce fuel consumption

Choice of a NEW high-torque Toyota 1FS gas engine or an advanced, efficient 14Z-II diesel engine
Optional ECO-mode feature restricts acceleration for travelling and load handling further helping to improve fuel efficiency
Optional engine auto-stop feature automatically stops the engine if the operator sets the parking brake but forgets to turn the engine off
Optional travel speed control feature limits the maximum speed to a preset level
Centralised Hydraulic Power System (CHPS) controls tilt, lift, attachment, steering and brake functions
Rugged planetary drive axle
Durable mast assembly design handles heavy-duty loads; unit also accommodates a variety of attachments.

Toyota exclusive "System Of Active Stability" SAS monitors key forklift operations, detecting and counteracting instability to help reduce the risk of tip-overs
When it senses instability, the Active Control Rear Stabiliser locks the rear axle to help reduce lateral tip-overs
Active Mast Function Controller senses and reacts to instability by limiting mast angle and speed according to the load's height and weight

The Operator Presence Sensing (OPS) system helps to prevent accidental movement of the forklift and forks when the operator is not seated at the controls. The OPS system senses if the operator is properly seated and at the controls by means of the seat switch. When the operator is properly seated at the controls the seat switch will go "on".
If the operator is not seated at the controls the seat switch will turn "off", and the OPS system will disable the ability to lower the forks, or tilt forward or back along with all the other loading and unloading movements.

Compact forklift body, low overall height and small turning circle boosts performance

Strategically configured console
Full hydrostatic power steering with steering synchroniser
Memory-tilt steering wheel
Spacious work environment with generous headroom and leg room.

Ultra-comfortable 4-way adjustable Operator Restraint Suspension (ORS) seat
Rear-pillar assist grip with horn button supports the driving position and offers easy horn operation while travelling in reverse.
Easy entry and exit on and off forklift with large assist grip and low and wide step
Roomy operator's compartment makes for comfortable foklift use during operation.

Excellent upwards visibility and excellent fork-tip visibility
Integrated monitoring system includes hourmeter; water temperature and fuel gauges; clogged air cleaner, oil pressure and charge warning lights.
Easy-lift hood.
No-tool floorboard removal.
RadialSeal high-flow 2-stage air cleaner.
Swing-down LPG tank bracket.

great for these industries

Transport / Freight / Distribution

Manufacturing / Construction / Maintenance

Home Improvement / Hardware

Grocery / Markets / Grocery Distributuion

Forestry Products / Timber / Mining

General / Refrigerated Warehouse

Computer / Electronics

Packaging

Third Party Logistics

Paper / Publishing

Landscaping / Nursery

Retail / Department Stores

Furniture

Aviation
