Reach Forklifts

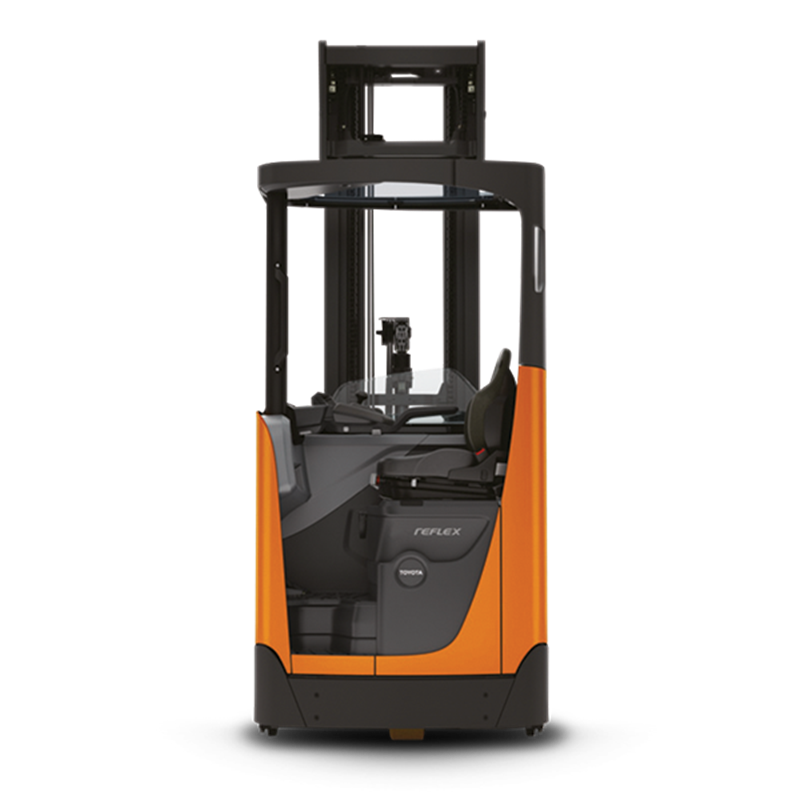

Toyota Reflex HN RRE 140/160 Reach Forklift

  • LIFTS
    1,600 kg
  • UP TO
    10,000 mm
  • AISLE WIDTH
    2,827 mm
  • img 1,400kg - 1,600kg capacities
  • img Indoor use, Narrow chassis
  • img Ergonomic design for optimum performance
  • img Concrete

RRE140/160HN Reach Forklift

  • Toyota Reflex HN-Series are reach truck forklifts available within Toyota's range with capacity up to 1600kg and lift heights up to 10 metres.
  • The new Reflex HN-series are built for applications requiring a narrow chassis width, such as block stacking or drive-in racking, or for work in tight situations.
  • Each reach forklift is configured to provide the optimum chassis/battery/mast combination according to the requirements of the application.
  • The HN-Series 140 and160 models are the perfect choice for the customer in need of a multipurpose reach forklift with a maximum of cost efficiency.
  • (Overseas model shown in video. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
  • Two different masts - tilting mast on HN 120 or mast with tilting forks on N 140 and N 160.
  • Very fast acceleration and maximum speed due to AC-powered drive motor.
  • Electronic regenerative braking (motor braking, pedal braking or change of drive direction).  Programmable to suit the driver.
  • State-of-the-art electronic system, incorporating CAN and Mosfet technology - requiring less wiring and giving greater reliability.
  • Parking brake is automatically applied when the truck is stationary, and automatically releases when the accelerator is depressed.
  • Electronic fault diagnosis and historic logging. Error and caution codes alert the driver and reduce speed or stop the forklift. A service timer counts time to next service and alerts the driver when it is due.
  • Excellent driver ergonomics, with adjustable seat, pedals and Toyota Control console, with electronic control of all hydraulic functions.
  • Panoramic vision through clear view mast and overhead guard. Visibility window for improved rear view.
  • 360° electronic, progressive and programmable steering.
  • Three push-buttons located on the dashboard allow easy selection of performance parameters. Standard set-up choices available.  Up to 10 PIN numbers available to provide access control.

Optional extras include:

  • Narrow overhead guard.
  • Cold store version.
  • Like all Toyota forklifts, the Toyota Reflex range of reach trucks is built according to the famous Toyota Production System, assuring the highest levels of quality, durability and reliability.

great for these industries

Transport / Freight / Distribution
Manufacturing / Construction / Maintenance
Home Improvement / Hardware
Grocery / Markets / Grocery Distributuion
Medical / Pharmaceutical
General / Refrigerated Warehouse
Computer / Electronics
Packaging
Third Party Logistics
Paper / Publishing
Landscaping / Nursery
Retail / Department Stores
Furniture
Aviation
