Takeuchi TB2150R Compact Excavator

Operating weight:
15,420kg
Engine:
DEUTZ TCD3.6L4
Emission:
EU Stage IV/EPA Tier 4 Emission Compliant
Engine power:
114 Hp/85kW
Bucket capacity:
0.45m³
Arm breakout force:
65.4kN
Bucket breakout force:
96.3kN
Maximum dig depth:
6,030mm
Machine width:
2,490mm

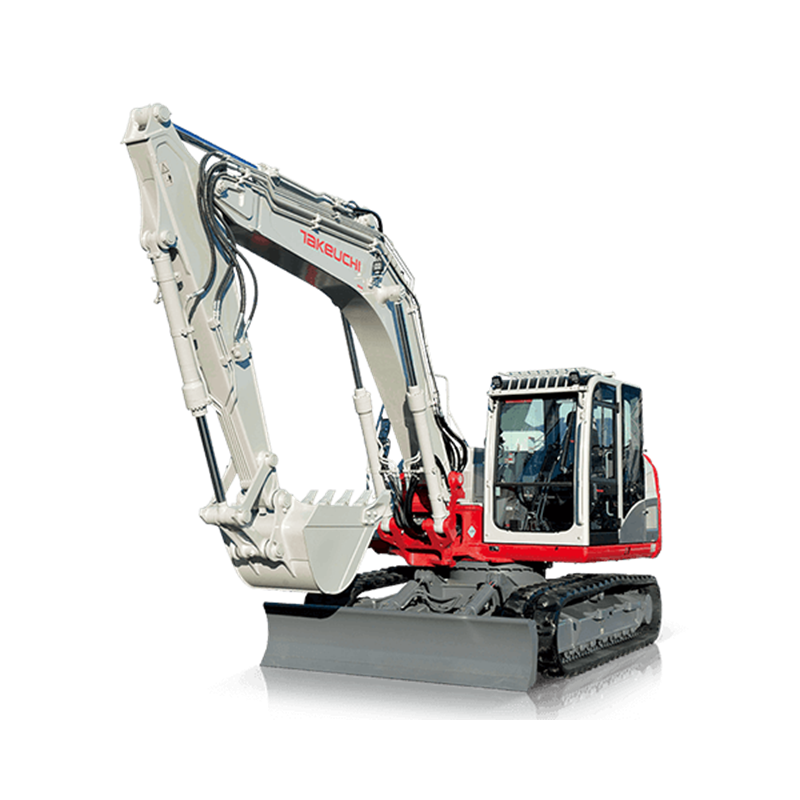

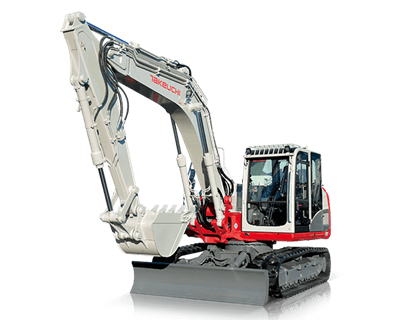

Takeuchi TB2150R Excavator

  • The TB2150R is the largest excavator in the Takeuchi line up. It features a fixed boom for greater stability and allows the operator to carry heavier loads. The TB2150R comes standard with a mono-boom that provides best in class digging depth (2-piece boom is optional). A redesigned operator’s station features a 7” color intuitive multi-informational display, radio with Bluetooth capabilities, easy to reach rocker switches and hydraulic joystick controls. An optional deluxe high back air suspension seat is available to keep the operator comfortable throughout the year.
  • The TB2150R features a large wraparound counterweight, a side / rear view camera, and multiple LED working lights located on the boom, cab, and front cover. This machine has three auxiliary hydraulic circuits that makes it the perfect attachment platform that will provide the operator the power and durability needed to complete the toughest jobs (fourth auxiliary hydraulic circuit is optional).
  • (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

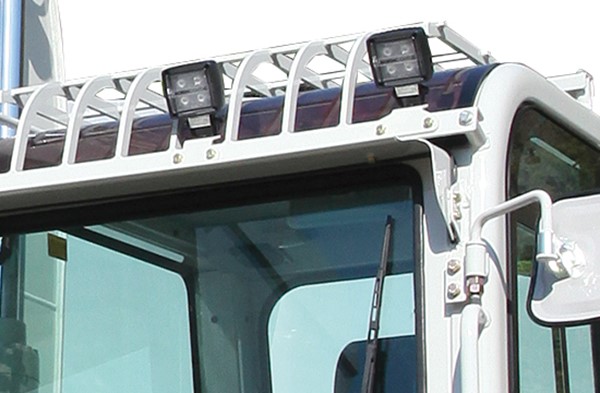

  • Deluxe LED Work Lights – Provide excellent illumination in low light conditions.
  • Side and Rear Camera – Allows the operator to view obstacles around the machine for added peace of mind.

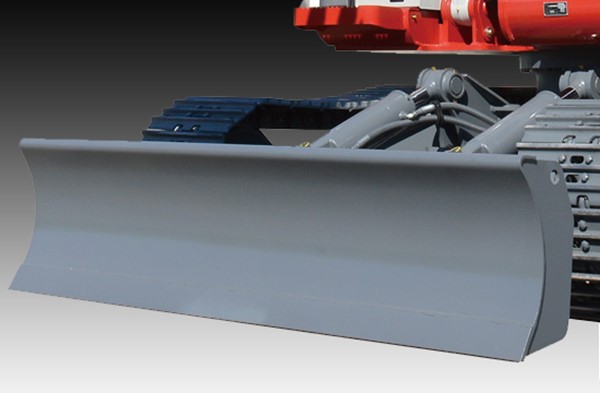

  • Optional Heavy Duty Blade with Float – Is ideal for site clean-up and finish work.
  • Cushioned Hydraulic Cylinders – Reduce operator fatigue and improve component longevity.

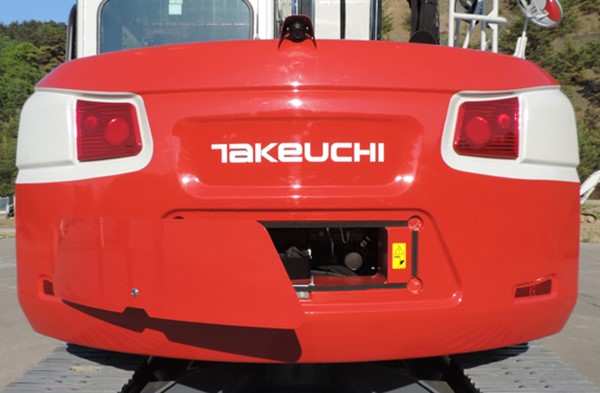

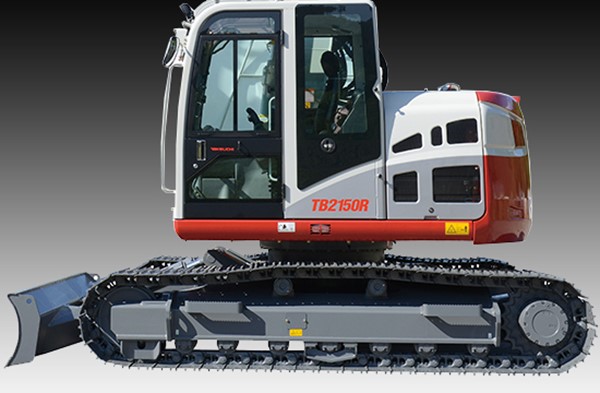

  • Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
  • Triple Flange Track Rollers – provide increased roller to rail contact improving track retention.
  • Top Glass with Sunshade – Improves visibility for truck loading or to overhead obstacles, such as, power lines, and the additional sun shade reduces glare for greater operator comfort.
  • Suspension Seat – Provides weight adjustment along with fore and aft movement and is also equipped with a 2-inch retractable seat belt.

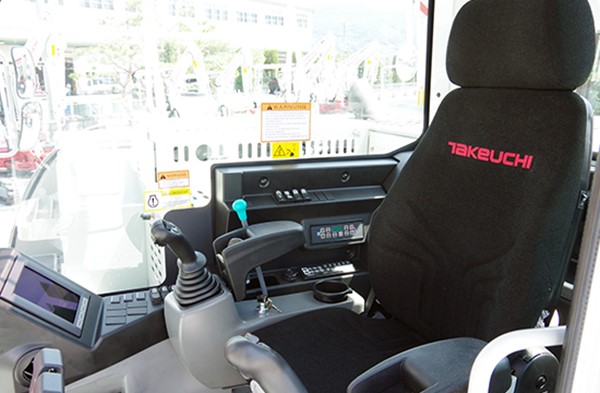

  • Operator’s Station – Is completely redesigned with an automotive styled interior, intuitive controls, a large 7″ colour multi-information display, and automatic climate control.
  • Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
  • Automatic Climate Control – Allows the operator to choose a preferred temperature for maximum comfort throughout the year.

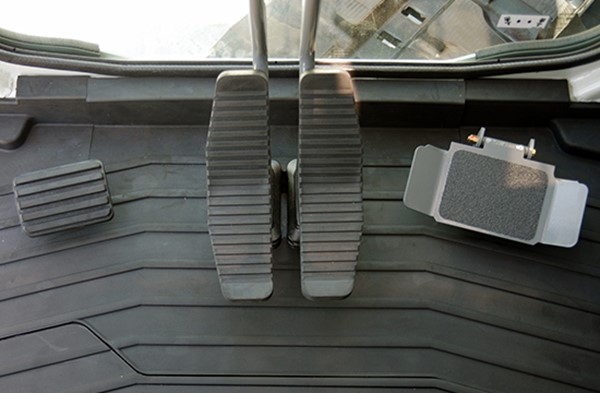

  • Spacious Floor – Allows the operator to be comfortable throughout the workday, and the large foot pedals fully support the operator’s feet when using the travel function.
  • Exhaust After-Treatment System – Includes a diesel particulate filter (DPF), and a selective catalytic reduction (SCR) with diesel exhaust fluid (DEF) to meet the latest emissions standards.

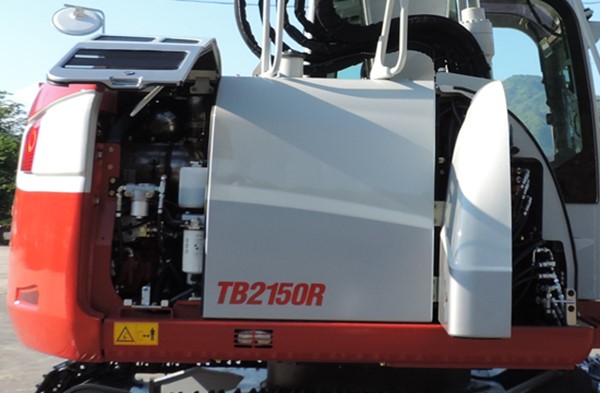

  • Right Rear Access Panel – Allows access to the pilot line and fuel filter, pump group and coolant expansion tank.
  • Left Side Access Cover – Provides excellent access to the dual element air cleaner, batteries and DEF tank and refuelling hose.

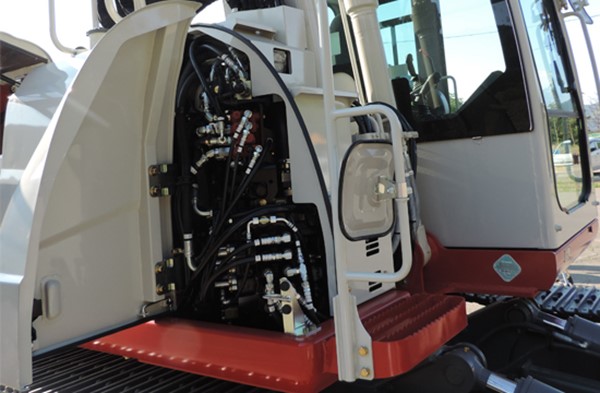

  • Front Right Access Panel – Provides access to hydraulic valve chest.
