Takeuchi TB215R Compact Excavator

Operating weight:
1,610 kg
Engine:
Yanmar/3TNV70
Emission:
EU Stage V Emission Compliant
Engine power:
15Hp/11.5kW
Bucket capacity:
0.038m³
Arm breakout force:
9.5kN
Bucket breakout force:
14.0kN
Maximum dig depth:
2,190mm
Machine width:
980/1,300
ENQUIRE

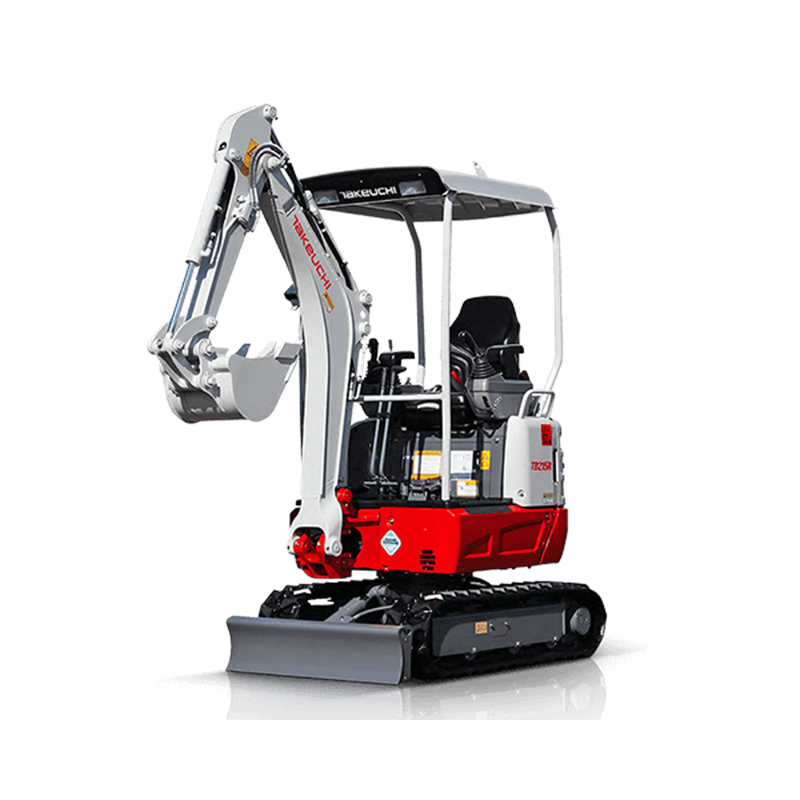

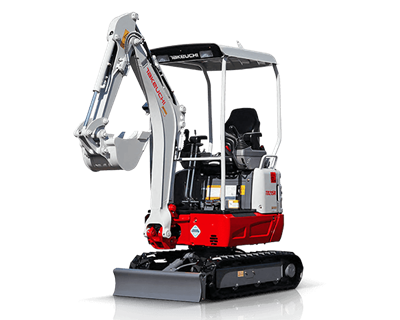

TB215R Compact Hydraulic Excavator

  • The TB215R is a minimal tail swing design allowing it to work in confined job sites with little concern for rear swing impacts.  It features a retractable undercarriage enabling it to enter a job site with limited access, and once in position the track frame can be expanded for improved stability.
  • (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

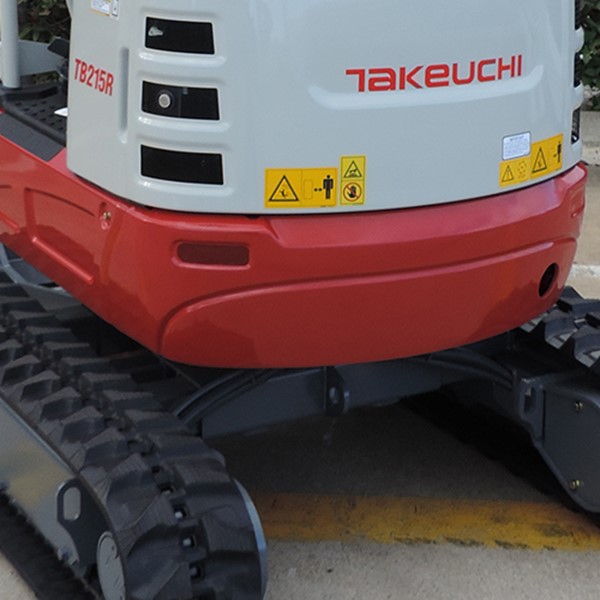

  • Minimal Tail Swing – allows the TB215R to work in the most confined applications for even greater versatility.
  • The engine is efficient and powerful and meets the latest emission standards.

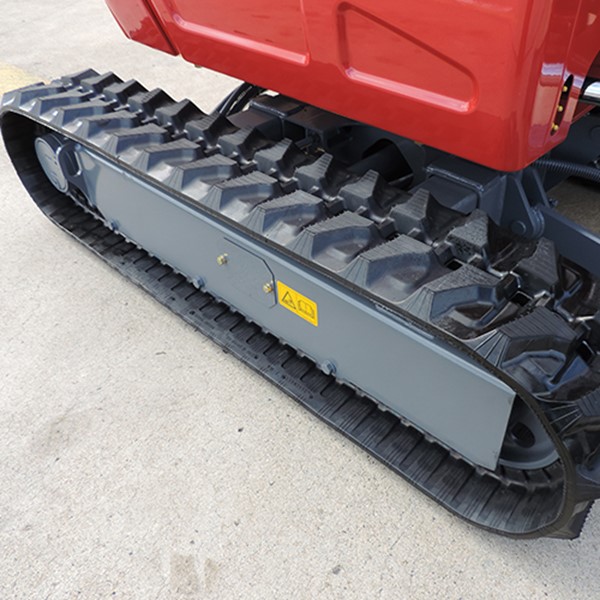

  • Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.
  • Improved Two Speed – features a convenient push button on the right travel lever to shift from low to high speed.

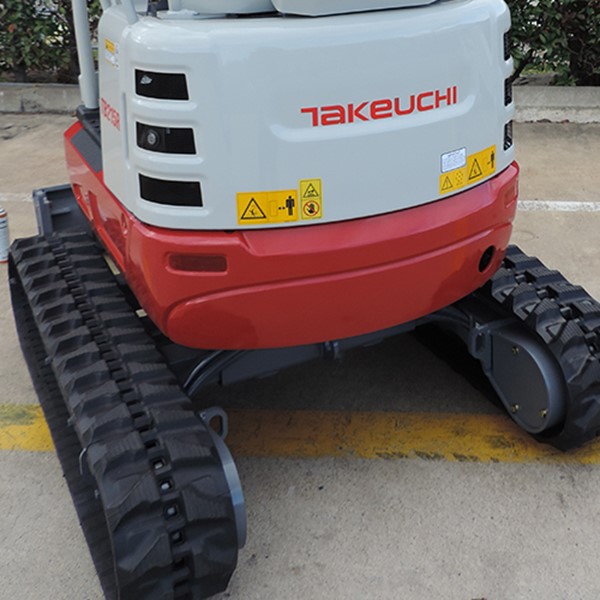

  • Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.

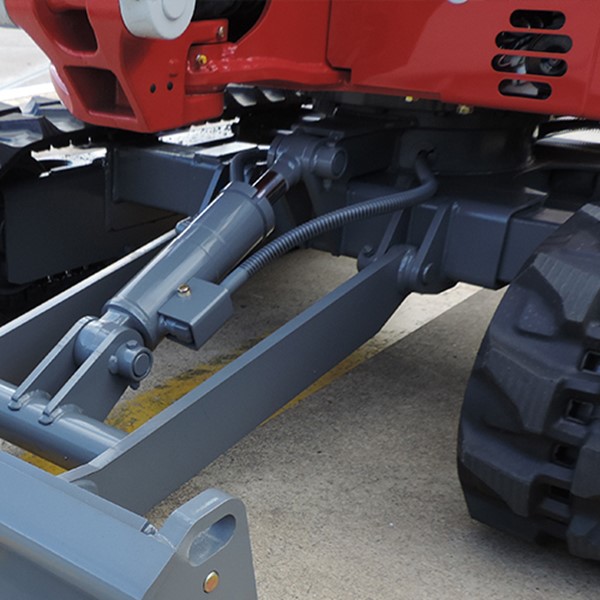

  • Heavy duty dozer blade features integrated anchor points.
  • All Steel Construction – Protects components and ensures long term durability.
  • Triple Flange Track Rollers – provide increased roller to rail contact improving track retention.
  • Multi-information display is easy to read and provides critical machine data to the operator.

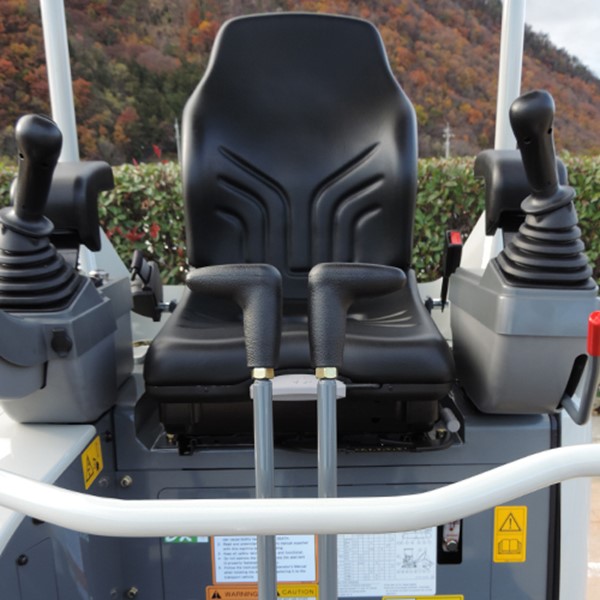

  • Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
  • Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.

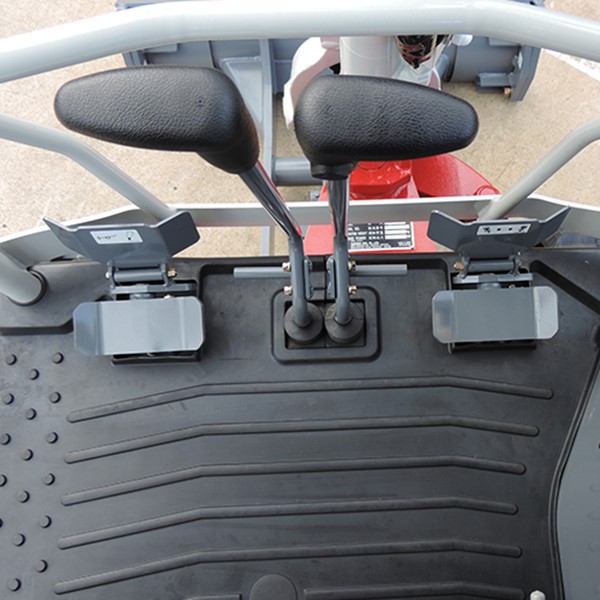

  • The operator’s station features ample leg room with easy access to the boom swing and auxiliary hydraulic control pedals.

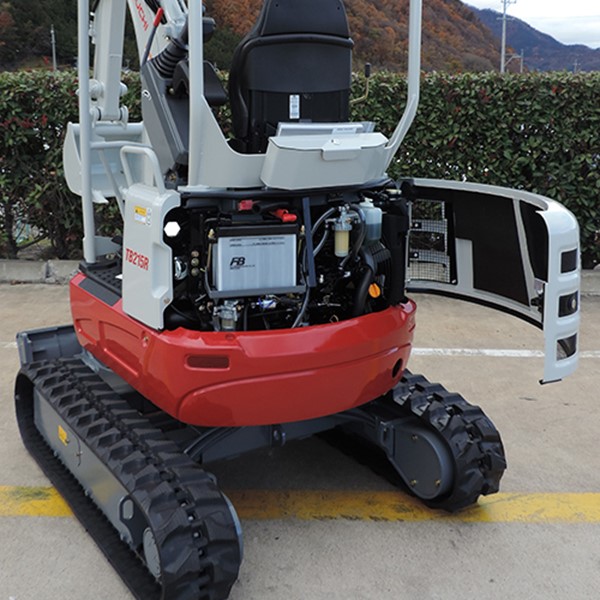

  • Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
  • Hydraulic oil sight gauge is easy to view as you enter the machine.
  • Lockable Fuel Fill – is convenient and secure. A remote gauge is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.

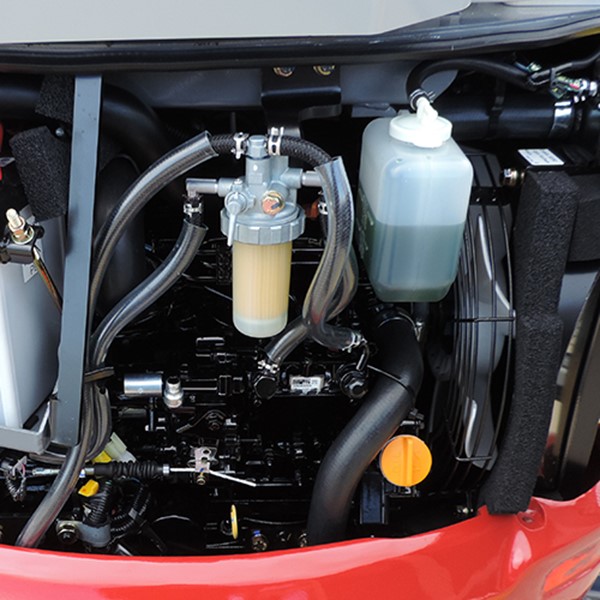

  • Fuel and engine oil filters, engine oil dipstick and fill, and coolant reserve tank are easily accessed from the rear of the machine.
