Takeuchi TB216 Compact Excavator

Operating weight:

1,770kg

Engine:

Yanmar/3TNV70

Emission:

EU Stage V/EPA Tier 4 Emission Compliant

Engine power:

15Hp/11.5kW

Bucket capacity:

0.038m³

Arm breakout force:

9.5kN

Bucket breakout force:

14.0kN

Maximum dig depth:

2,190mm

Machine width:

980/1,300

ENQUIRE

Download product brochure

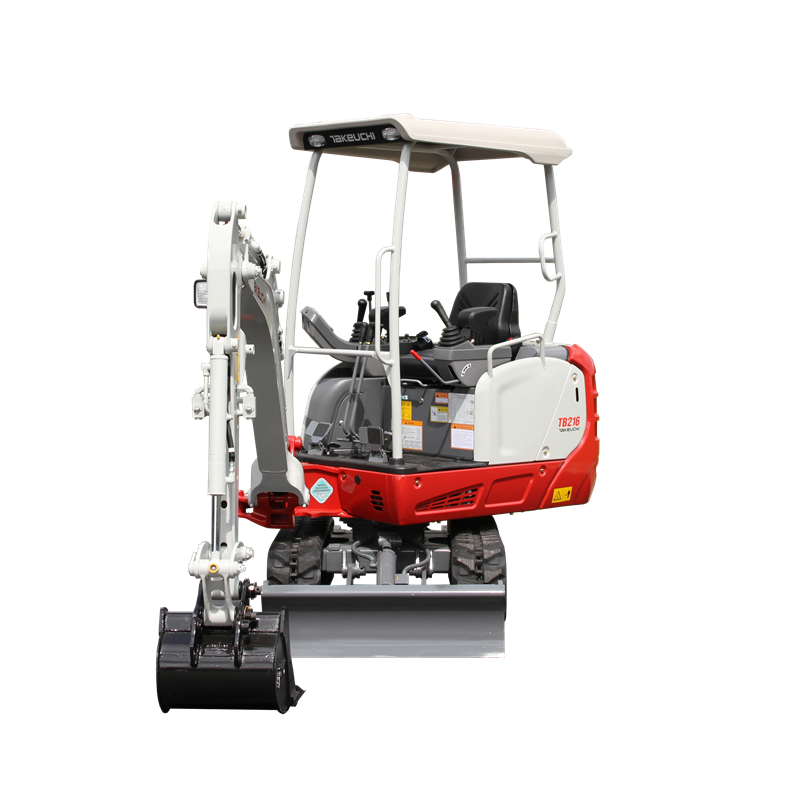

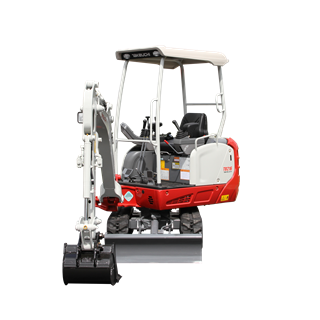

TB216 Compact Excavator

TB216 provides the operator with a nice blend of power and functionality. It is completely redesigned for greater operator comfort, performance, and serviceability.

(Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

Compact and Convenient – The TB216 delivers excellent size and balance for restricted job sites.

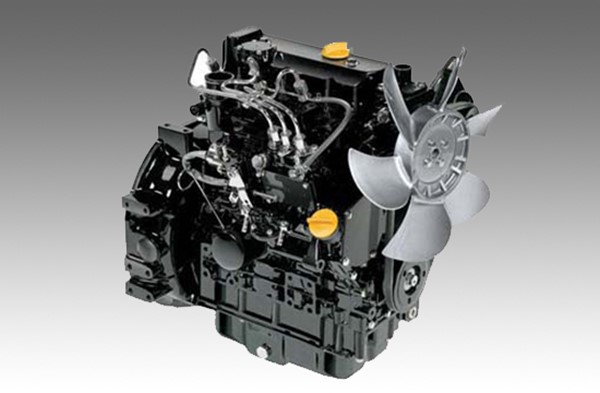

Engines that meet latest emissions standards – are efficient and powerful and does not require any exhaust aftertreatment systems.

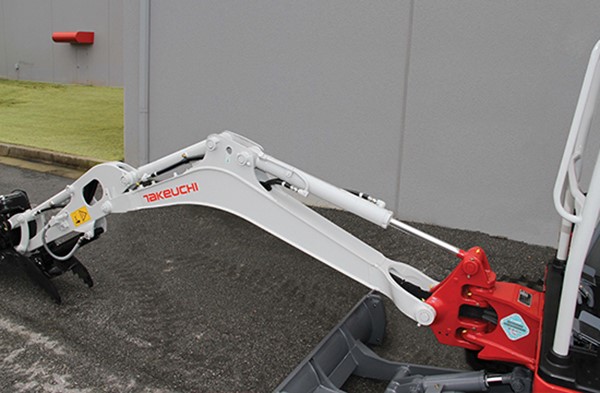

Excellent Reach – the optimized boom and arm design delivers excellent reach for greater productivity.
Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.
Improved Drive System – Provides 15% more tractive force that the previous machine and now features automatic downshift for better turning, traveling and backfilling.

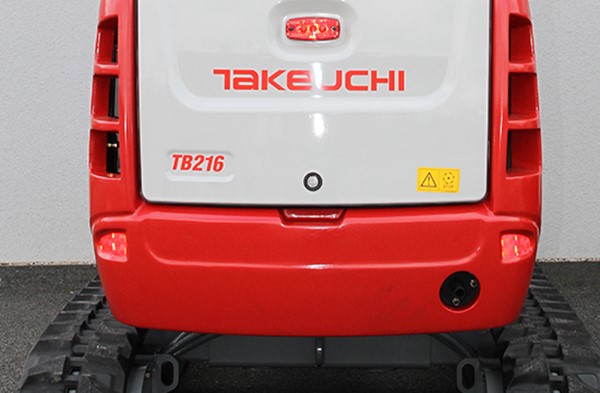

Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
Top Mount Boom Cylinder – helps protect the boom cylinder from damage from the bucket and debris.
Protected Hydraulic Plumbing – all hoses for working equipment are routed through the boom and arm for an extra level of protection, and greater visibility of the work equipment.

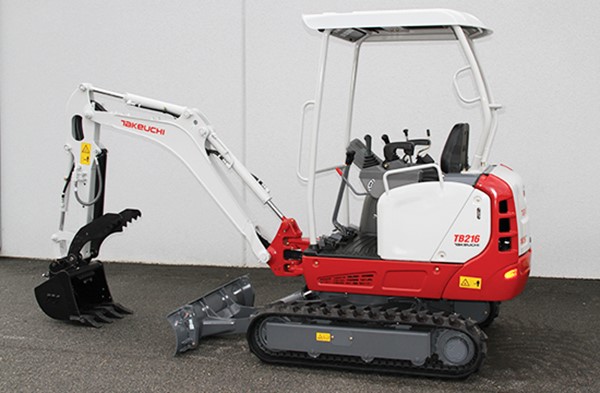

All Steel Construction – Protects components and ensures long term durability.
Triple Flange Track Rollers – provide increased roller to rail contact improving track retention.

Multi-Information Display – Is easy to read in all lighting conditions and keeps the operator informed on the status of the machine.

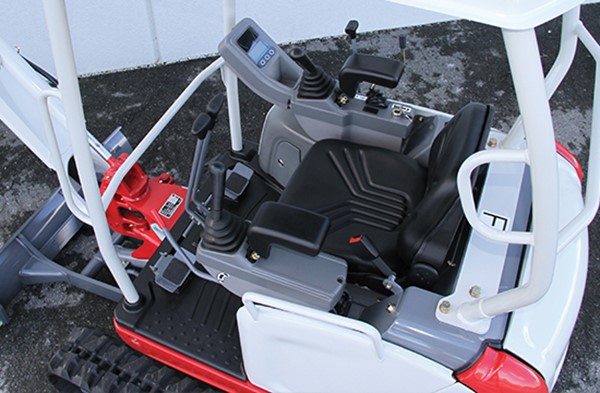

Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.
TOPS/ROPS/OPG – offers operator protection and peace of mind.

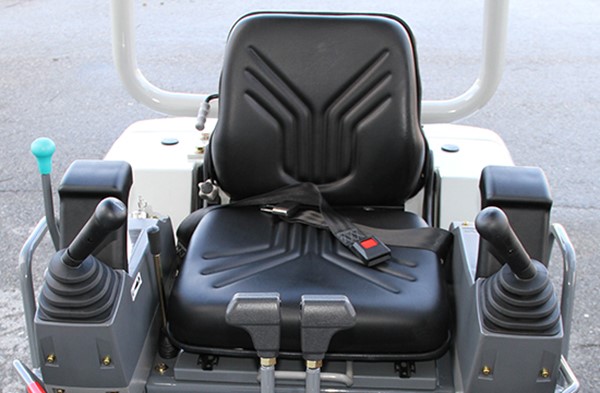

Suspension Seat – Provides weight adjustment along with fore and aft movement and is also equipped with a 2-inch retractable seat belt.
Adjustable Arm Rest – Help provide a comfortable operating position for the precision pilot controls.
Optional Pattern Change Valve – will allow the operator to choose their preferred operational pattern for greater efficiency and safety.

High-Capacity Cooling System – Uses heavy duty side-by-side radiator and hydraulic cooler for optimum cooling.
Lockable Fuel Fill – is convenient and secure. A remote gauge is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.

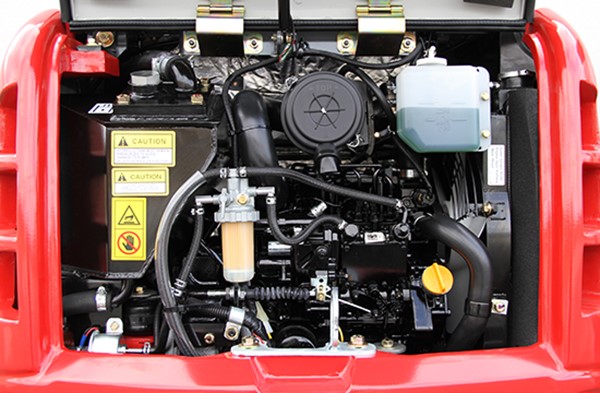

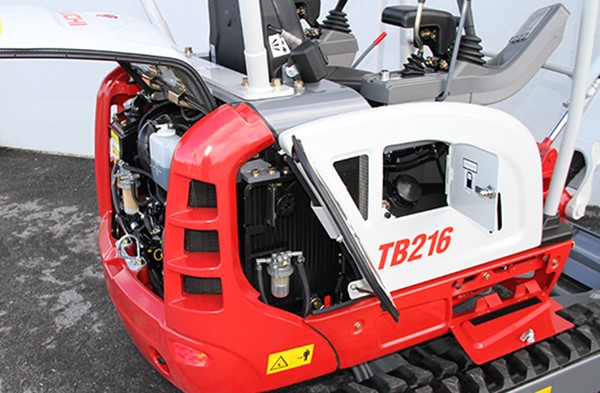

Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
Under Seat Component Access – the battery and electrical components are conveniently located under the operator’s seat along with the pattern change valve.
