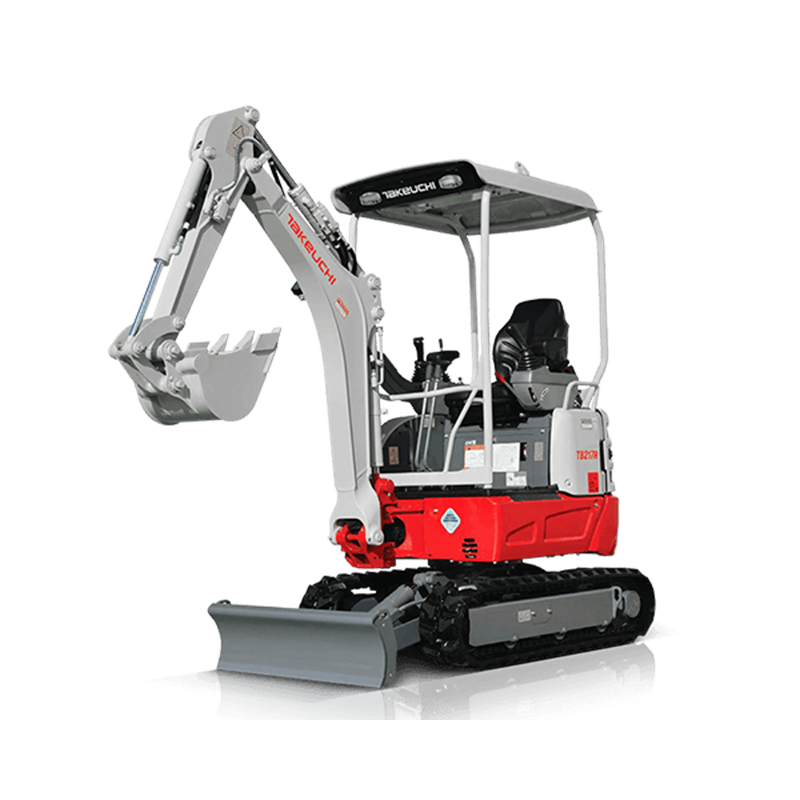

Takeuchi TB217R Compact Excavator

Operating weight:

1,680kg

Engine:

Yanmar/3TNV70

Emission:

EU Stage V Emission Compliant

Engine power:

5Hp/11.5kW

Bucket capacity:

0.038m³

Arm breakout force:

9.5kN

Bucket breakout force:

14.0kN

Maximum dig depth:

2,190mm

Machine width:

980/1,300

ENQUIRE

Download product brochure

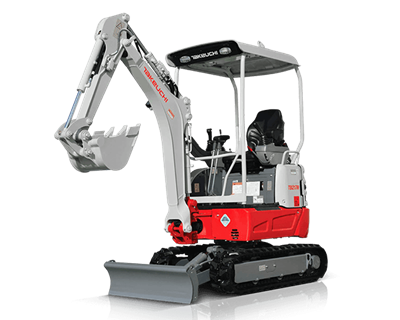

Takeuchi TB217R Compact Excavator

The TB217R is a minimal tail swing design allowing it to work in confined job sites with little concern for rear swing impacts. It features a retractable undercarriage enabling it to enter a job site with limited access, and once in position the track frame can be expanded for improved stability.

(Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

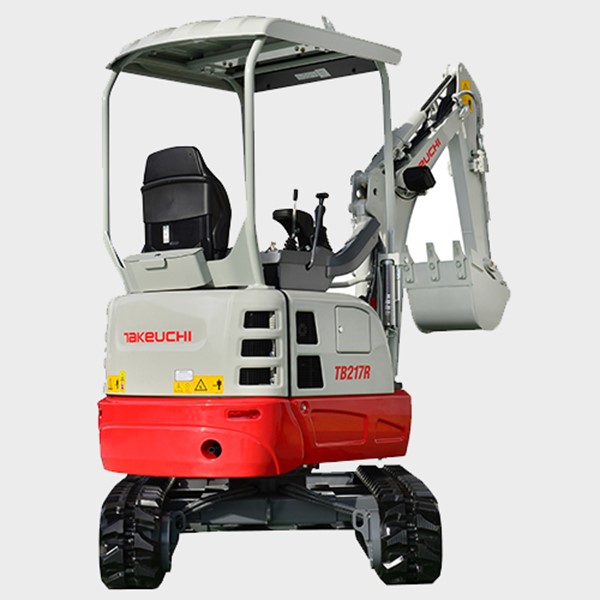

Minimal Tail Swing – allows the TB217R to work in the most confined applications for even greater versatility.
The engine is efficient and powerful and meets the latest emission standards.
Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.
Improved Two Speed – features a convenient push button on the right travel lever to shift from low to high speed.

Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.

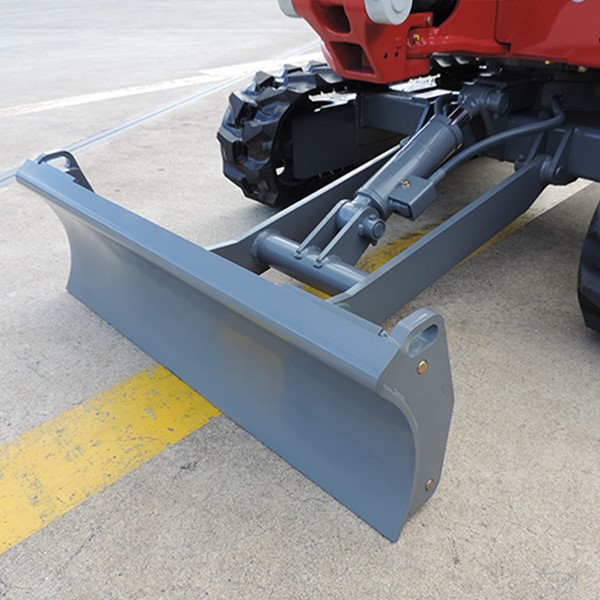

Heavy duty dozer blade features integrated anchor points.

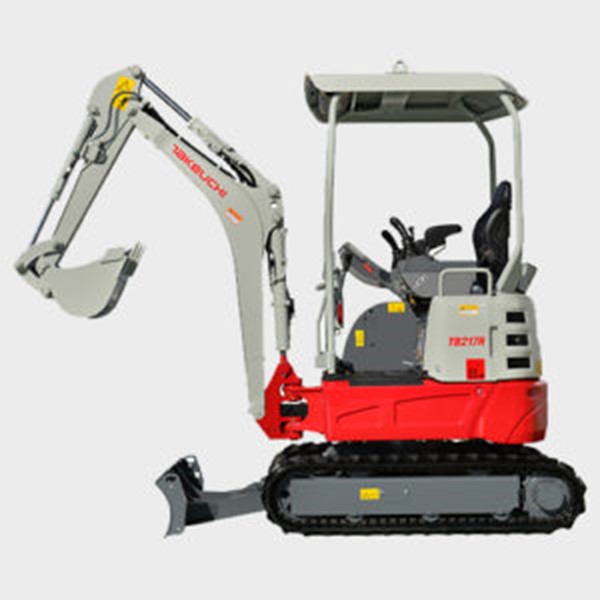

All Steel Construction – Protects components and ensures long term durability.
Triple Flange Track Rollers – provide increased roller to rail contact improving track retention.

Multi-information display is easy to read and provides critical machine data to the operator.
Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.

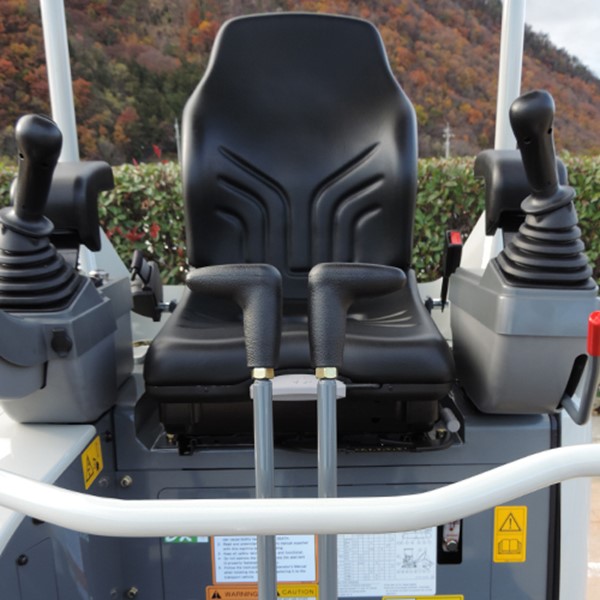

Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.

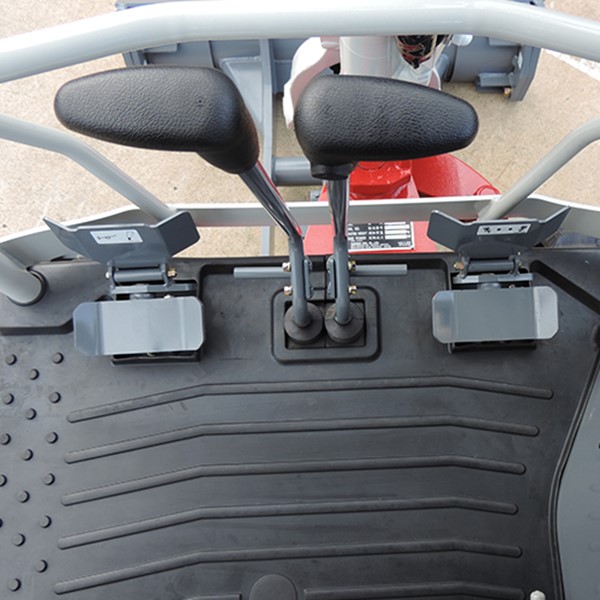

The operator’s station features ample leg room with easy access to the boom swing and auxiliary hydraulic control pedals.

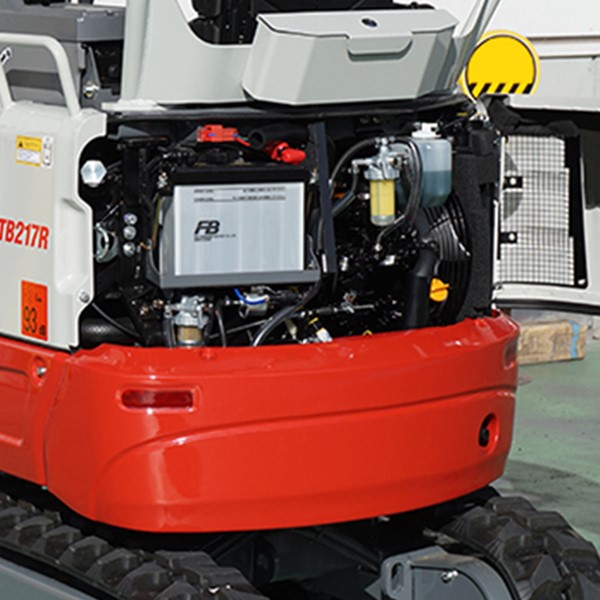

Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.

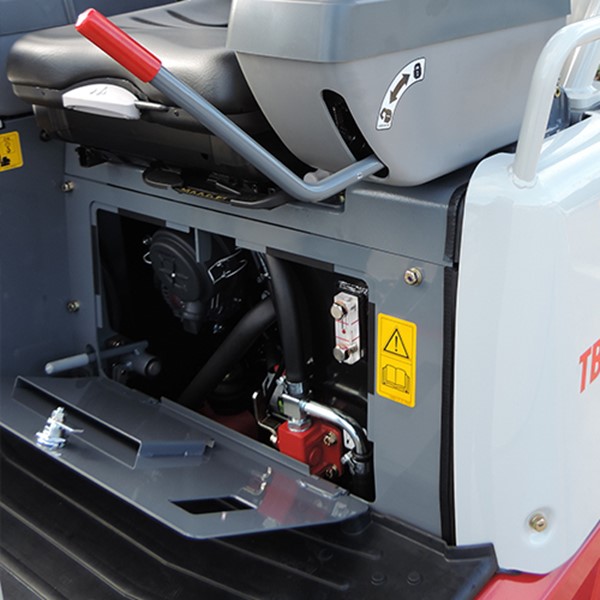

Hydraulic oil sight gauge is easy to view as you enter the machine.
Lockable Fuel Fill – is convenient and secure. A remote gauge is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.

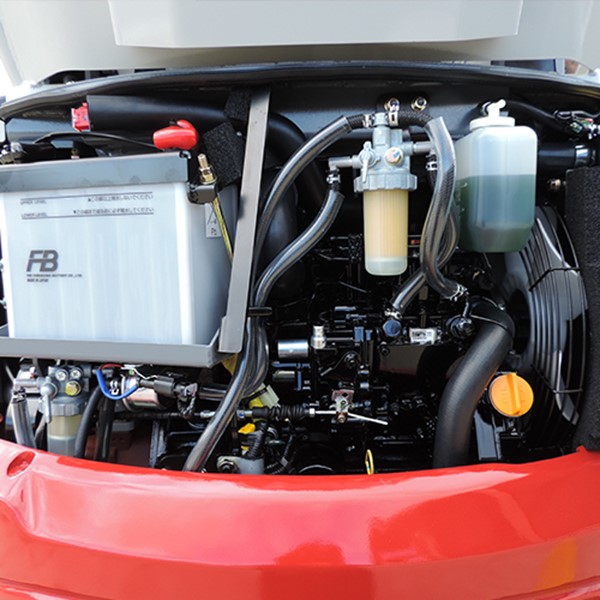

Fuel and engine oil filters, engine oil dipstick and fill, and coolant reserve tank are easily accessed from the rear of the machine.
