Takeuchi TB325R Compact Excavator

Operating weight:

2,440kg

Engine:

Yanmar/3TNV82A

Emission:

EU Stage V/ EPA Tier 4 Compliant

Engine power:

22Hp/16.5kW

Bucket capacity:

0.064m³

Bucket breakout force:

19.3kN

Maximum dig depth:

2,540mm

Machine width:

1,500mm

ENQUIRE

Download product brochure

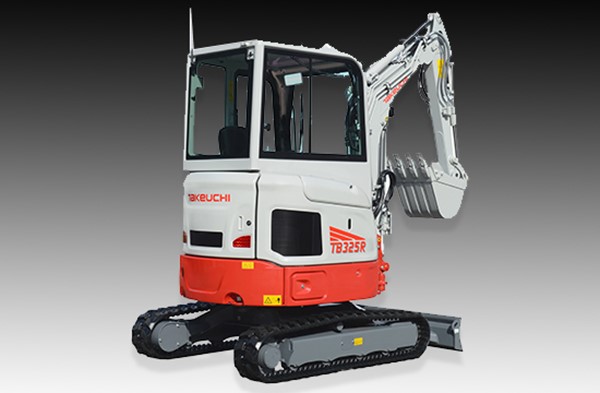

Takeuchi TB325R Compact Excavator

The TB325R is the newest addition to Takeuchi’s 300-Series excavator line-up. This new model features a short tail-swing design which decreases the amount of overhang from the counterweight resulting in improved maneuverability and increased productivity on confined job sites.

(Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

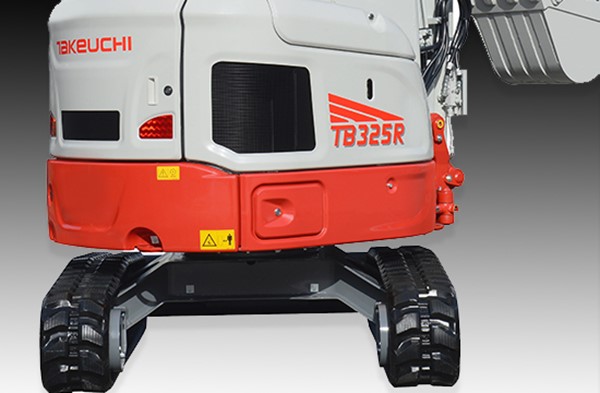

The short tail swing design – Allows the TB325R to work in confined job sites with little concern for rear swing impact.
Automatic Step Down Travel Motors – Provide torque on demand when pushing, climbing, or turning in high speed mode.

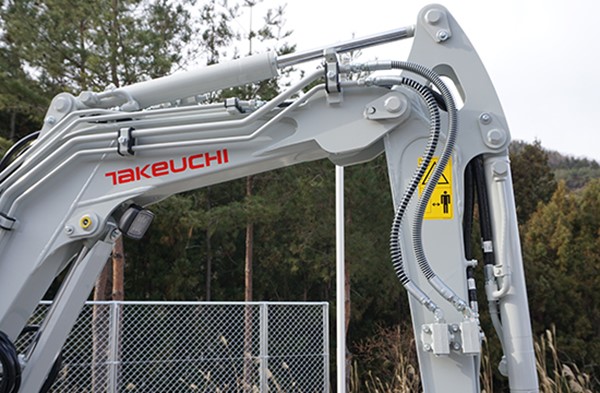

Up to Four Optional Service Ports – Simplify installation of hydraulic attachments improving productivity and limiting downtime.
Stop Valve – Simplify attachment installation and limit the release of hydraulic oil.
Compact Size and Weight – Enables the TB325R to be easily moved on a small trailer, with a simple car driver’s license.

TOPS / ROPS / OPG Cab and Canopy – Provides the operator with greater peace of mind.
Triple Flange Track Rollers – Provide increased roller to rail contact improving track retention.

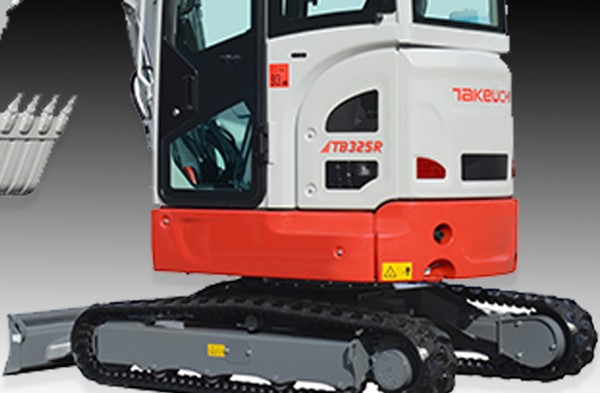

Heavy Duty Counterweight – Offers wrap around protection and contributes to the excellent stability.
All Steel Construction – The engine hood and right access panels are all steel for increased durability.
Heavy Duty Blade – Integrated gusset reinforcements and large blade cylinder give you the strength and durability you expect from the class leader.

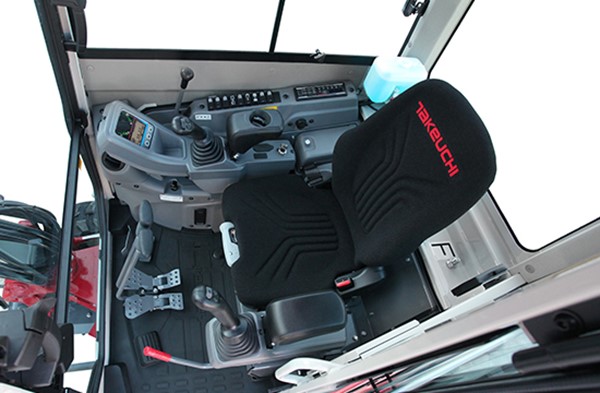

Operator’s Compartment – Has increased from the previous model, the TB23R and it provides unmatched comfort and visibility.

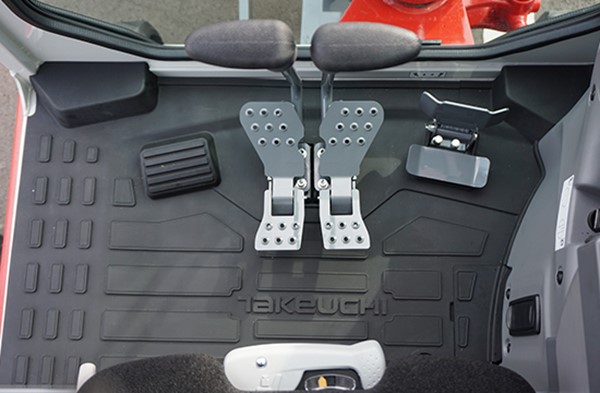

Optional Folding Foot Pedals – Can be placed in the stowed position for additional foot space improving operator comfort.
Suspension Seat– Provides back rest adjustment and weight adjustment along with fore and aft movement and is also equipped with a 2-inch retractable seat belt.
Pilot Operated Joystick Controls – Deliver precise responsive controls and are low effort reducing fatigue.
3.5″ Multi-Informational Display – Provides the operator with the status of machine’s critical functions.

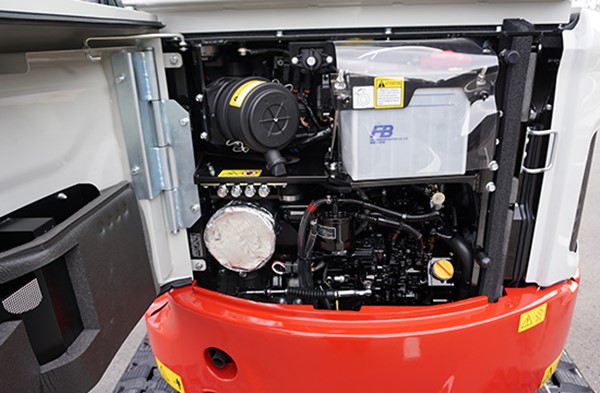

Rear Engine Hood – Allows access to the dipstick, engine oil fill, air cleaner, pilot line filter, battery and pressure detection port of the hydraulic pump.

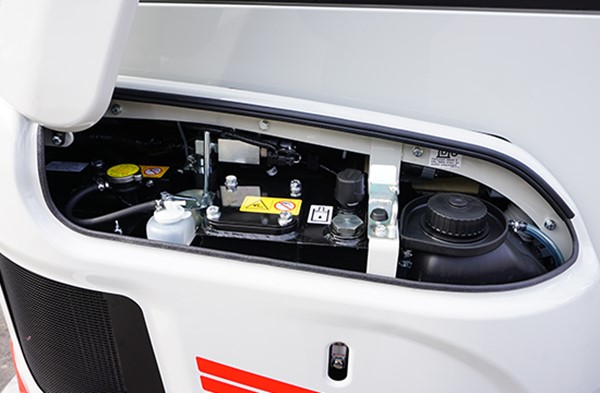

Right Access Cover – Provides excellent access to the air breather of the hydraulic tank, hydraulic oil fill, fuel fill and coolant expansion tank.
Right Access Panel Located in the Counterweight – Provides convenient access to the water separator and toolbox.
Keep it Clean – Drain on the floor area provides easier clean out.

OTHER PRODUCTS IN THIS RANGE

Takeuchi TB210R Compact Excavator

learn more

Takeuchi TB215R Compact Excavator

learn more

Takeuchi TB216 Compact Excavator

learn more

Takeuchi TB217R Compact Excavator

learn more

Takeuchi TB20e Compact Electric Excavator

learn more

Takeuchi TB320 Compact Excavator

learn more

Takeuchi TB225 Excavator

learn more

Takeuchi TB235-2 Compact Excavator

learn more

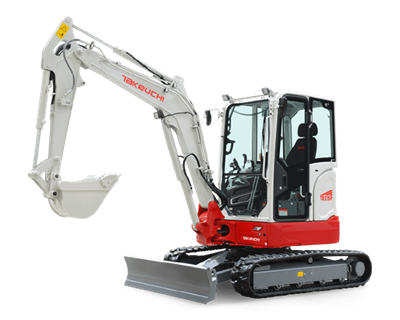

Takeuchi TB335R 3.7T Compact Excavator
