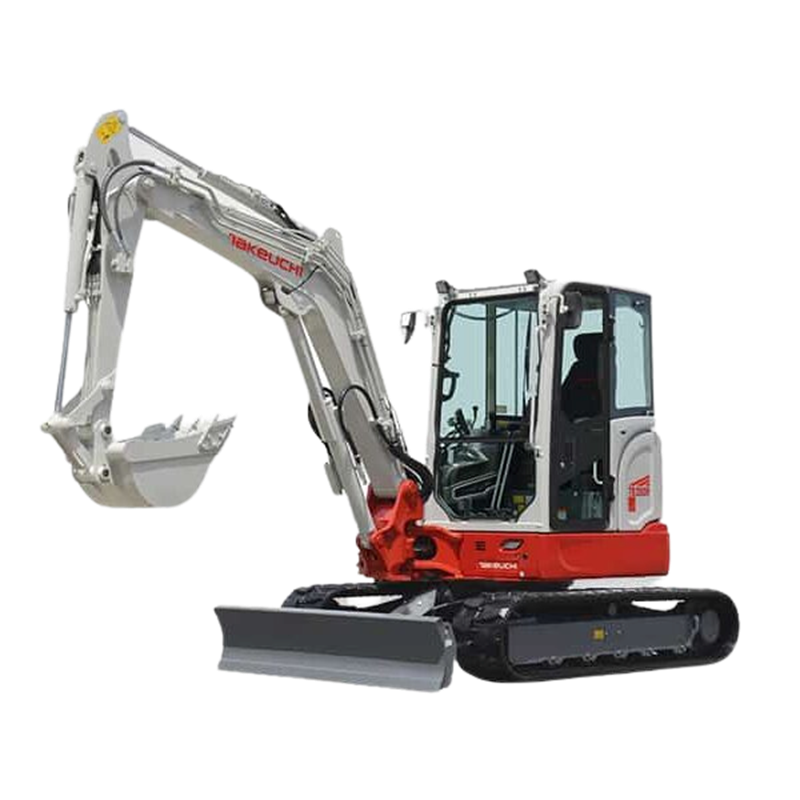

Takeuchi TB350R 5T Compact Excavator

Operating weight:
5,085kg
Engine:
Kubota/V2607
Emission:
EU Stage V/ EPA Tier 4 Compliant
Engine power:
44 Hp/32.4 kW
Bucket capacity:
0.141m³
Bucket breakout force:
37.3kN
Maximum dig depth:
3,575mm
Machine width:
1,775mm

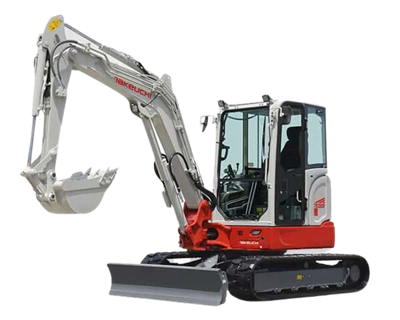

Takeuchi TB350R 5T Excavator

  • Featuring a wide array of state-of-the-art technology and a cabin that welcomes you, the Takeuchi TB350R has been designed from the ground up to ensure your success and comfort throughout the workday.  The short tail swing, 5 tonne TB350R is at home in a wide range of applications and delivers the power and performance you have come to expect from Takeuchi.
  • A high flow primary auxiliary circuit delivers up to 93.2 L/min enabling you to utilize a wide variety of hydraulically driven attachments, and a standard long arm gives you greater dig depth, reach, and dump height. Impressive breakout and traction forces enhance the capability of the TB350R when working in the most demanding conditions.
  • (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

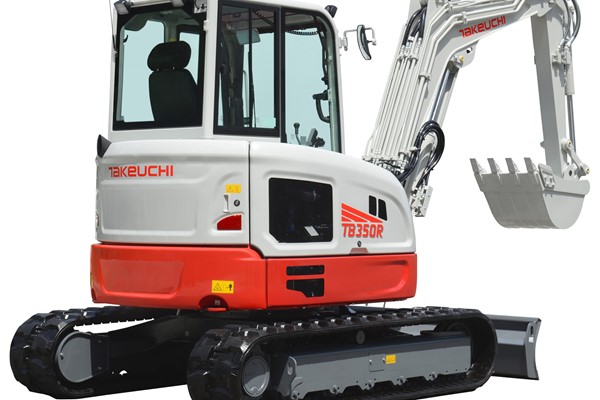

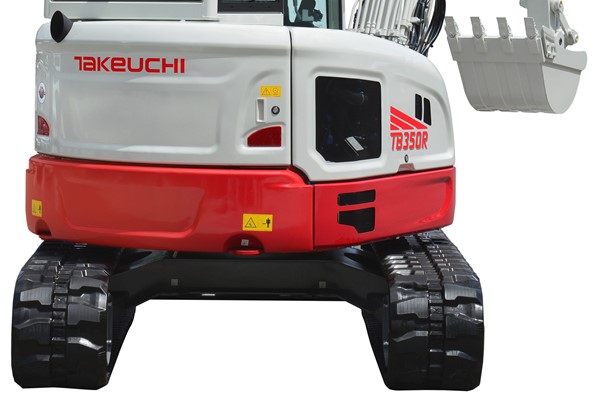

  • The short tail swing design – Allows the TB350R to work in confined job sites with little concern for rear swing impact. Only 75 mm overhang beyond the track width enables the operator to work the machine in limited space with complete confidence and improve operating efficiency.
  • Automatic Step Down Travel Motors – Provide torque on demand when pushing, climbing, or turning in high speed mode.

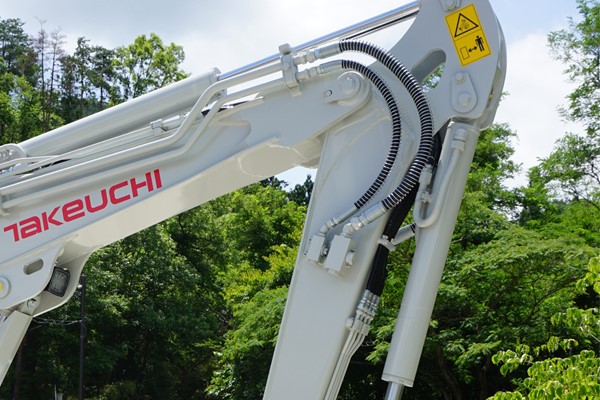

  • Multiple Auxiliary Hydraulics – Simplify installation of hydraulic attachments improving productivity and limiting downtime.
  • Shut-off Valve – Simplify attachment installation and limit the release of hydraulic oil.
  • Stay in your Seat – Hydraulic flow can be adjusted from the comfort of the operator’s seat.
  • Fuel supply pump with Hose Reel System under the right-side cover automatically supplies fuel to the tank and stops when the fuel tank is full. Operators do not need to check the fuel gauge while filling.
  • TOPS / ROPS / OPG Cab and Canopy – Provides the operator with greater peace of mind.
  • Triple Flange Track Rollers – Provide increased roller to rail contact improving track retention.
  • Heavy Duty Counterweight – Offers wrap around protection and contributes to the excellent stability.
  • All Steel Construction – The engine hood and right-side cover are all steel for increased durability.

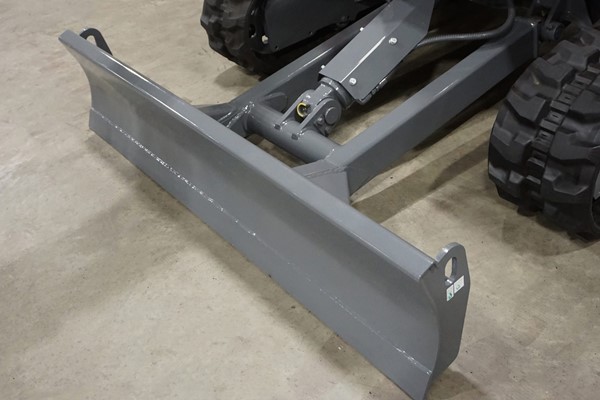

  • Heavy Duty Blade – Integrated gusset reinforcements and large blade cylinder give you the strength and durability you expect from the class leader.

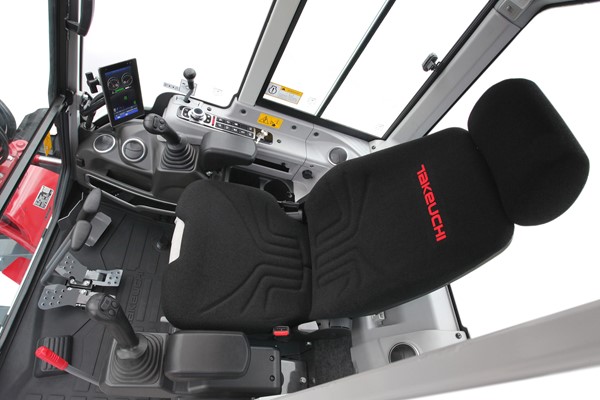

  • Automotive Styled Interior – Is completely redesigned over TB200 series excavator. Spacious operator compartment is almost the same size as the conventional model, TB250-2.

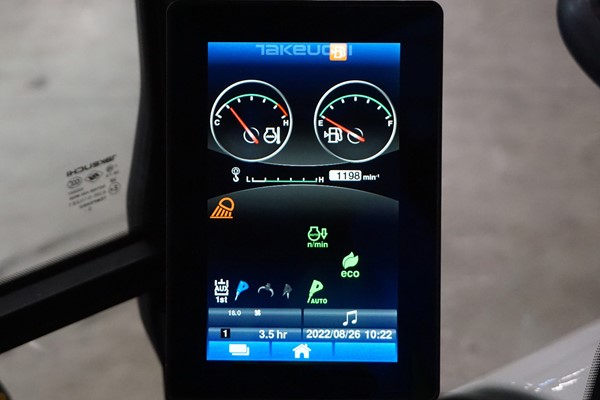

  • 7” Colour Touch Screen Display (CAB) – The most machine functions and settings, including air conditioning, DAB radio and hydraulic flow adjustment can be quickly accessed through 7” touch screen display for maximum convenience.
  • Intuitive Jog Dial and Multi-Switch Control Panel – Most machine features, including engine speed can be controlled by new designed jog dial for a more intuitive operation. The multi-switch control panel offers simple and durable touch pad control of common functions.
  • Folding Foot Pedals – Can be placed in the stowed position for additional foot space improving operator comfort.
  • Pilot Operated Joystick Controls – Deliver precise responsive controls and are low effort reducing fatigue.
  • Wide Opening Covers – Offer convenient access to main components for outstanding serviceability.

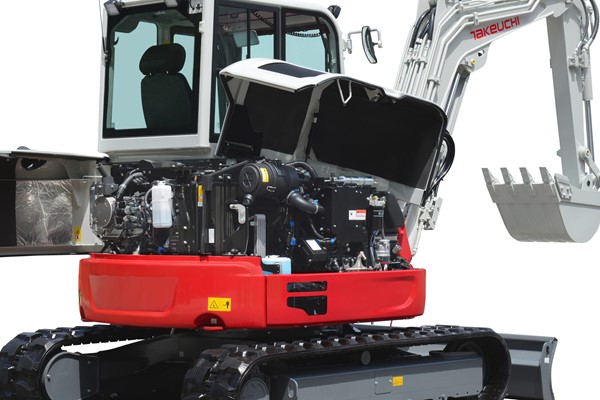

  • Rear Engine Hood – Allows access to the dipstick, engine oil filter, double element air cleaner, pilot line filter and DPF.

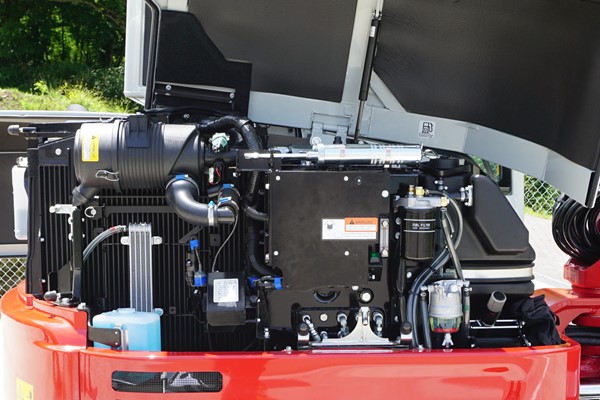

  • Right Side Cover – Provides excellent access to the air breather of the hydraulic tank, hydraulic oil fill, fuel filter, water separator, fuel supply pomp, battery, fuse box, A/C condenser, and radiator.
