Automatic Guided Vehicles (AGVs)

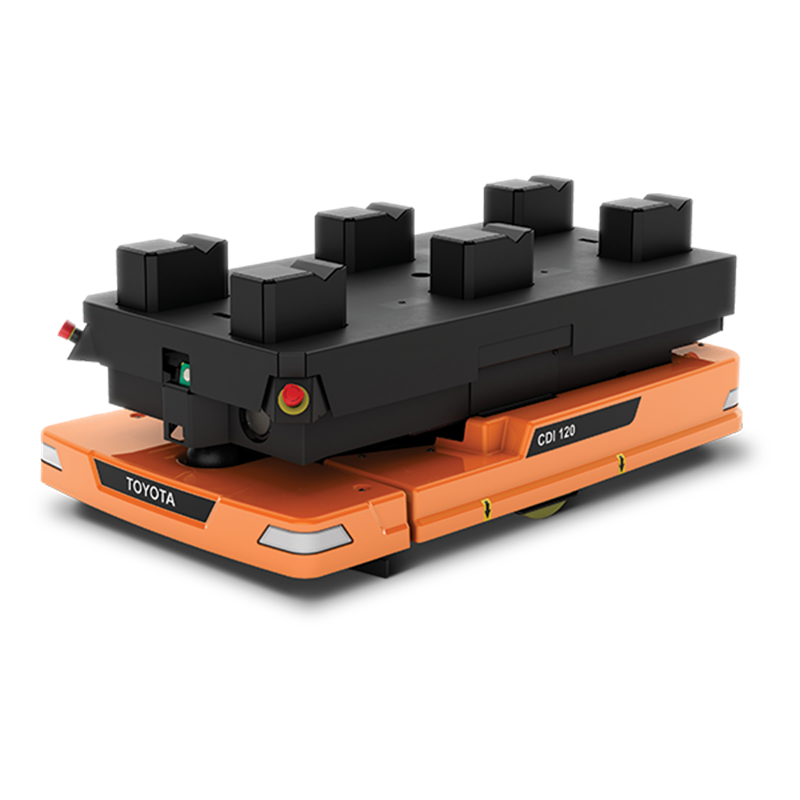

Toyota CDI120 Automated Horizontal Carrier

  • LIFTS
    1,200 kg
  • img Automated pallet carrier
  • img Indoor use only horizontal carrier
  • img Safe, productive, energy efficient
  • img Concrete
ENQUIRE

Toyota CDI120

  • The Toyota CDI120 pallet carrier is ideal for cost efficient horizontal transport of single pallets, supporting the shift to forkless handling in populated areas.
  • The CDI120 is well suitable for automated transport in your production site or logistic centre. It can be integrated in a manual operation or with Toyota's Autopilot products to operate in a fully automated system. The Autopilot CDI can pick up and transport pallets from point A to B, where for example an automated stacker will store it in the racking.

  • The drive-through station allows the automated pallet carrier to support your point-to-point transport or replenishments efficiently, optimising your logistics flow.

  • (Overseas model shown in video. Please contact TMHA for more details).

  • The Toyota Autopilot CDI120 is programmed to work alongside manual operators and complete all tasks safely. The built-in safety scanner detects obstacles along its path and takes action to prevent collisions. The automated vehicle is continuously scanning its environment and the safety fields turn towards the driving direction to ensure maximum safety.

  • The CDI120 automated horizontal carrier is able to move around your logistic centre in a very agile way. Thanks to its pick-up and drop-off station, the AGV doesn’t need to reposition or manoeuvre to access the load, it can just run through. The CDI120 can easily pick up the pallet and continue its journey in one straight line. Another great advantage is that the station can be placed on the floor underneath your racking, optimising the use of floor space.

  • In addition, the Toyota CDI120 is compact and has the ability to turn on point. Combined with the low height, this guided vehicle can work in tight spaces where it is not obvious for other AGVs or manual trucks to operate.

  • The automated horizontal carrier CDI120 is equipped with lithium-ion batteries that are up to 30% more energy-efficient whilst reducing CO2 emissions. With the ability of auto-charging, including scheduled and opportunity charging options, the AGV can charge quickly in between tasks without the need of personnel or charging rooms, making it fully automated.
  • The CDI120 has its navigation scanner close to the floor offering for a compact design. It only makes use of natural navigation to find its way in your warehouse. This navigation method utilises recognisable reference points or landmarks within the warehouse, such as walls, racking and fixed objects, to calculate the AGV’s location.
  • The automated pallet carrier can operate via standard natural navigation based on a map with static features and optionally use dynamic natural navigation. In this case a sophisticated software can handle an environment where new features are added. The AGV will learn and memorise the new feature in the process of doing.
  • Natural navigation is a lower-cost alternative for warehouses where the surroundings remain fairly constant. The AGV can utilise the existing environment to navigate without the need for extra equipment such as reflectors, avoiding extra cost and installation of additional equipment.
